CASE MAKER

Fast Speed Automatic Case Making machine adopts motion control system, promote the production speed to 40 pieces/min. It uses servo driver system, photo sensor detect system, servo correction positioning system as well as some of new technology. The machine adopts 9 sets of servo systems ans it can finish the processes such as paper feeding, gluing, board feeding, photo sensor detecting, servo positioning, flattening and folding. It can be applied for high volume packaging material production like moon cake, tea, cell phone, under wear, handcraft product, cosmetics, folder, calendar, hard cover books and so on.

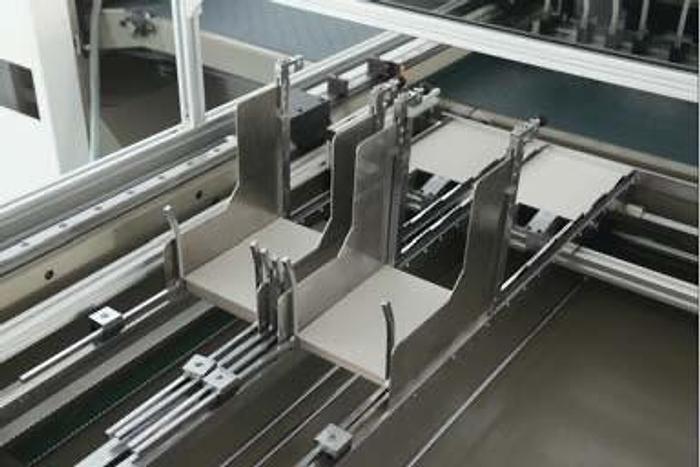

• Cardboard feeding mechanism applies Japanese Panasonic servo system, which is not only high precision, fast but also reliable.
• The unique double sheets detection system avoids and solves two or more paper feeding problem.
• Automatic three-point photo sensor position correcting system, which is able to enhance the accuracy of the lamination of board and paper.
• Enhance the board changing efficiency with the reasonable and humanized design.
• Stable and reliable mechanical drive structure, high quality electrical components ensure the machine performance. <> The machine edge folding technology makes the product more nice and beautiful.
• The touch screen operation menu and machine fault display function makes the operation convenient and fast troubleshooting.
• Aviation aluminum and plexiglass shield, more effective protection of the personal safety of the operator.
• Paper conveying structure with automatic constant temperature heating function to prevent roller sticking paper caused by water vaper.
• Pneumatic motor mechanism stir the glue to avoid the glue solidification and burn out the motor.
• Fast Speed Automatic Case Making machineadopts motion control system, promote the production speed to 40 pieces/min.
