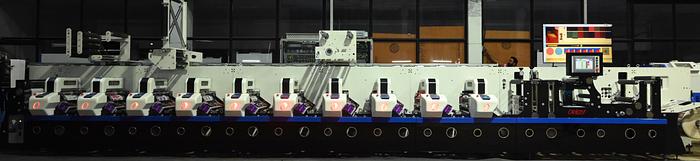

X-PRESS FLEX 370/450

X-PRESS FLEX 370/450

Location:Bologna, Italy

orCall +359 2 492 9330

Description

The X-Press flex ASR 370/450 series is our narrow web Flexo label printing machine. This press is an amalgamation of our knowledge of high quality printing and use of new and cutting edge technologies to produce a press that can provide a global standard of print quality. This press is suitable for paper and film labels and provides excellent ROI’s for converters.


What differentiates us:

  • Orients proprietary X-gear design and gear box integration system allows for a PCD run out of only 2 microns leading to a much faster machine, very little noise, excellent registration, and higher print quality.
  • Orients custom print unit design allows for faster job changes, better web handling, and more ease of use.
  • Orient is also offering sleeve technology if required in the press.
  • Orient uses higher grade of internal metallurgy than any of its competitors leading to a more robust and long lasting machine along with a more efficient one.
  • A full backward integrated in house manufacturing unit and a full service and support staff across the country.

Specifications

ManufacturerOrient
ModelASR 370/450
ConditionNew
Stock Number6258417
Substrate thickness range:Paper≤400 gsm & Film ≥ 10 microns (depending on material)
Max Printing width range:370 mm or 450 mm
Maximum Printing speed:180 m/min depending on substrate used
Print repeat length:190-610 mm
Applicable ink:Eco friendly water based ink / UV ink / Solvent based ink
Drying:IR and hot air drying + optional UV
Drive:Servo (semi – servo / double servo optional)
Registration:Auto registration (optional)
