Automatic Thin Paper Double Side Tape applicator

CS series Automatic Double Side Tape Applicator is a multi-function machine. It's designed in light

weight. It can stick double side tape or tearing tape on cards, posts, CD/DVD boxes, presentation

file bags, envelopes, tags, phone boxes etc. With the vacuum transport system, there is enough

space for ink-jet system and feeder etc. and easy to operate.

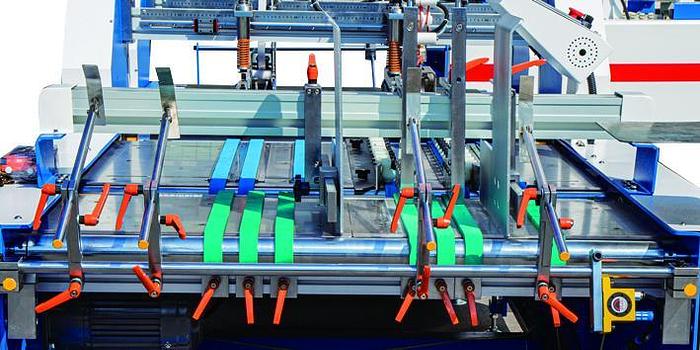

Feeder Section:

Special system makes the feeding belt be adjusted individually and easily.Independent vibration motor system enhances the feeding quality. Feeding knife and flap on left and right can be adjusted up and down as one set which can shorten the changing time.

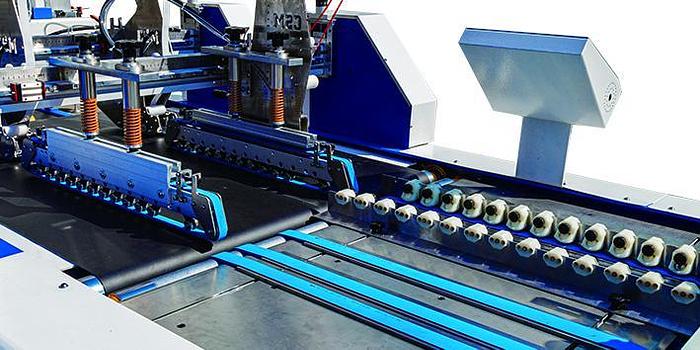

Calibration Section:

This part just follows the folding machine technical with new calibration part. Keep one box side as the base and ensure the products in the same line when running.

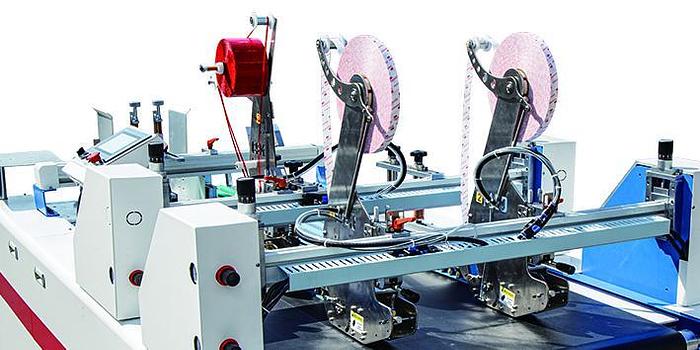

Sticking Table:

Sticking table use lengthen platform and deliver the products on conveyor belt. Equipped with the special mounting bracket, and it is very convenient to adjust by the straight tracker.

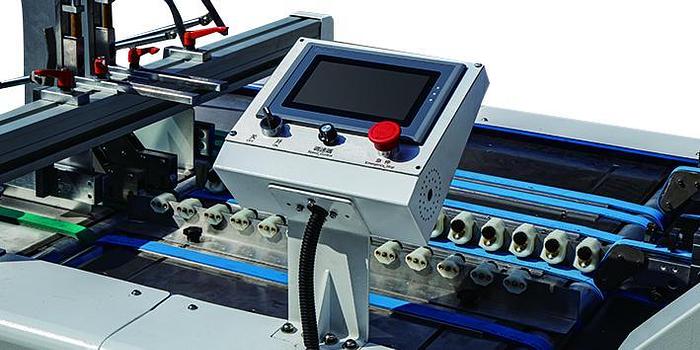

Controller System:

The screen can show all the information. This can make the parameter setting and operating more easily and conveniently. Position tracking uses optical fiber technology which makes it more precise and function stable.

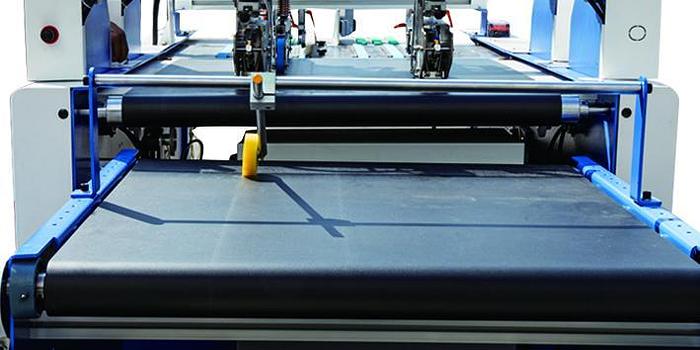

Conveyor Section:

Scale type collection with counting system simplify the collection.
